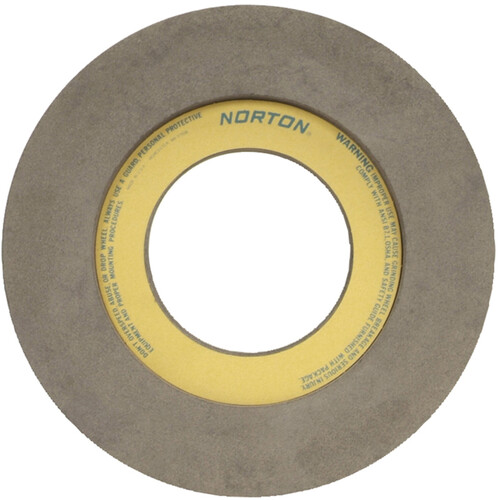

12″ × 6″ × 5″ Feed Wheel Type 07 Recessed Two Sides 80 Grit Aluminum Oxide
| Wheel Diameter | 12″ | Maximum RPM | 605 |
| Thickness | 6″ | Hardness | Medium |
| Arbor Hole | 5″ | Type | Centerless Feed Wheel |
| Wheel Type | Type 07 | 2nd Recess Depth | 1/2″ |
| Grit | 80 | 2nd Recess Diameter | 7-1/2″ |
| Recess Diameter | 7-1/2″ | Color | Brown |
| Recess Depth | 1-1/2″ | Bond Type | R51 |
| Recess Type | Both Sides | Specification | 57A80-RR51 |
| Material | Aluminum Oxide |
Product Features
| Remarks | bull;Tough, durable aluminum oxide abrasive •Smooth-running rubber bond system •Durable, all-purpose feed (regulating/workpiece driving mechanism) wheel for centerless grinding applications •With the centerless wheel, quickly impart a cylindrical shape with minimum geometry loss to part being ground •Made in USA in ISO certified facility •Centerless grinding is a production process that produces extremely close tolerances on metal cylindrical forms or parts. Centerless grinding is used on a wide variety of workpieces. The key components in the process are the grinding wheel, the work rest blade (used to support the work) and the regulating or ?feed? wheel (the drive mechanism for the workpiece). | Country of Origin | Mexico |
Shipping Info
Additional Fees and Notes
0
Hazard Code
W
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Weight
51
