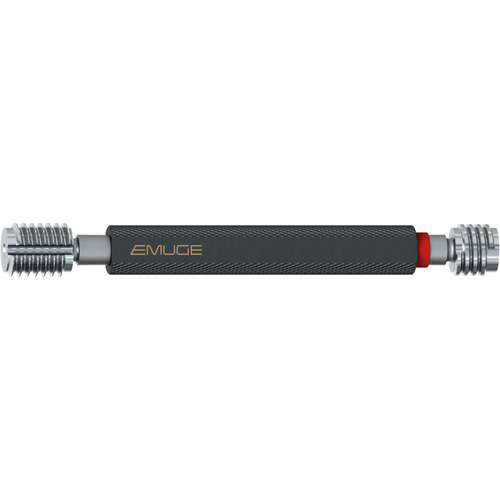

Thread Plug Gage with Handle; Go/No Go; #4-40; UNC; 3B; ANSI/ASME B1.2
| Type | Thread Plug Gage with Handle | Classification | 3B |
| Go / No Go | Go/No Go | Certification | Short form certificate included |
| Thread Size | #4-40 | Single or Double End | Double End |
| Thread Type | UNC | Dimension Standards | ANSI/ASME B1.2 |
| Pitch | 40 |
Product Features
| Remarks | • A cleansing channel is ground into the GO side to eliminate thread damage from dirt and grime. • Reduced thread start diameter construction for easy insertion | Country of Origin | Germany |
Shipping Info
Package Weight
.002
