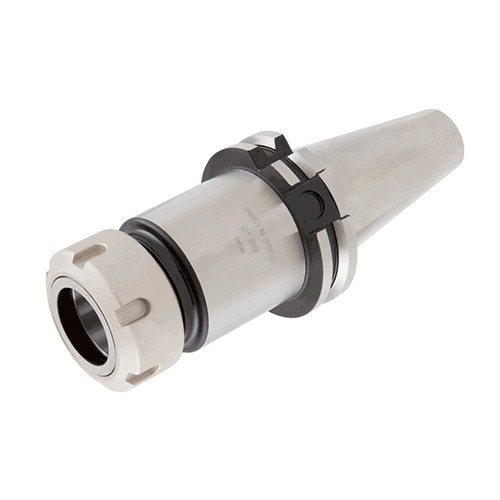

DIN69871 50 ER40X100
DIN 6499 ER collet chucks with a DIN 69871 form ADB taper shanks.

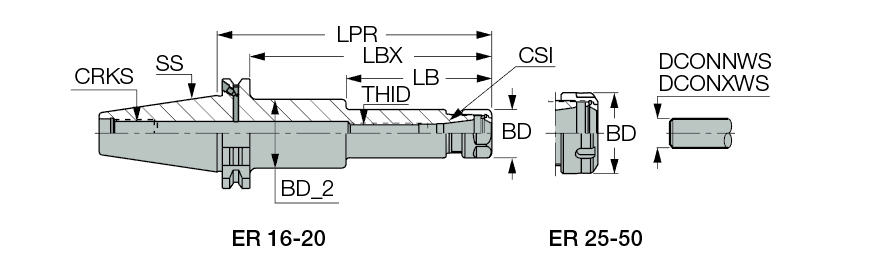

| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 3 mm |
| Connection Size (CSI) | ER40 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 26 mm |
| Body Diameter (BD) | 63 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 100 mm | Body Material | Steel |
| Tool Type | DIN 69871 | Connection Code Machine Side (CCMS) | DIN69871 |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | DIN 6499 ER collet chucks with a DIN 69871 form ADB taper shanks. | Country of Origin | Turkey |
| Remarks | B is the designation for coolant through flange. |
Shipping Info
Package Weight
8.587
