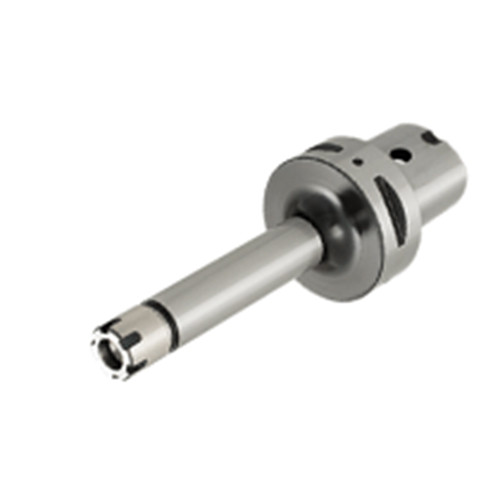

C5 ER16X100 M
DIN 6499 ER Long Mini Collet Chucks with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks.

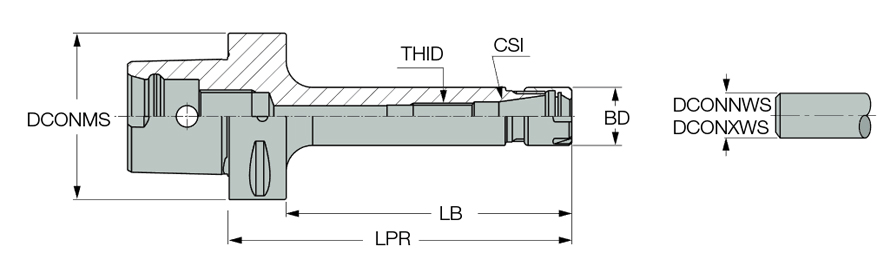

| Shank Size (SS) | 50 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Diameter (BD) | 0.866″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Protruding Length (LPR) | 3.937″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Body Material | Steel |
| Shank Standard | CAMFIX | Inner Diameter | ER16 |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
Product Features
| Family Description | DIN 6499 ER Long Mini Collet Chucks with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks. | Country of Origin | Israel |
Shipping Info
Package Weight
1.453
