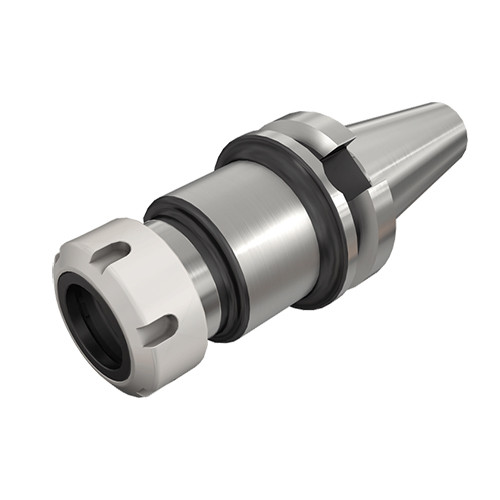

BT50 ER40X150
DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks.

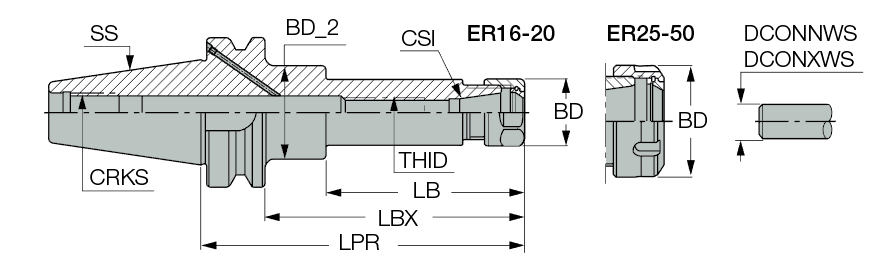

| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.118″ |
| Connection Size (CSI) | ER40 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.024″ |
| Body Diameter (BD) | 2.48″ | Measurement Type | Inch |
| Protruding Length (LPR) | 5.906″ | Body Material | Steel |
| Tool Type | BT | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks. | Country of Origin | India |
| Remarks | B is the designation for coolant through flange. |
Shipping Info
Package Weight
12.313
