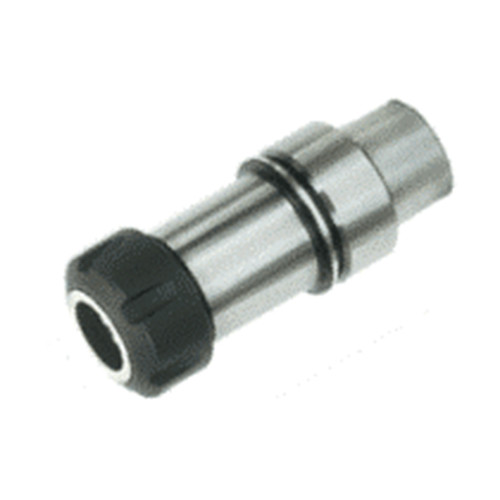

HSK E50 ER16X100
Collet Chuck ; 50 Shank Size ; ER16 Connection Size ; 1.102″ Body Dia. ; 1.968″ Shank Dia. ; 0.02″ Min. Capacity ; 0.394″ Max. Capacity

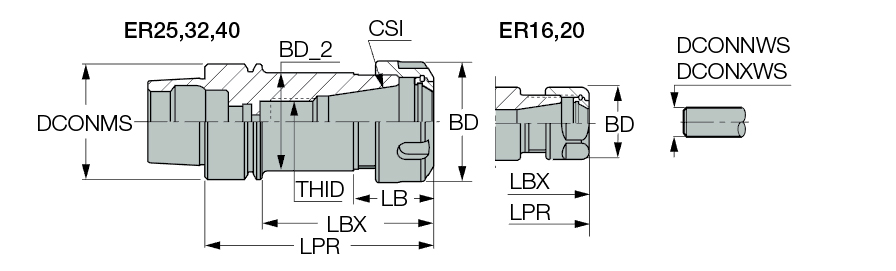

| Shank Size (SS) | 50 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Diameter (BD) | 1.102″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Protruding Length (LPR) | 3.937″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Body Material | Steel |
| Tool Type | HSK | Connection Code Machine Side (CCMS) | HSK |
Product Features

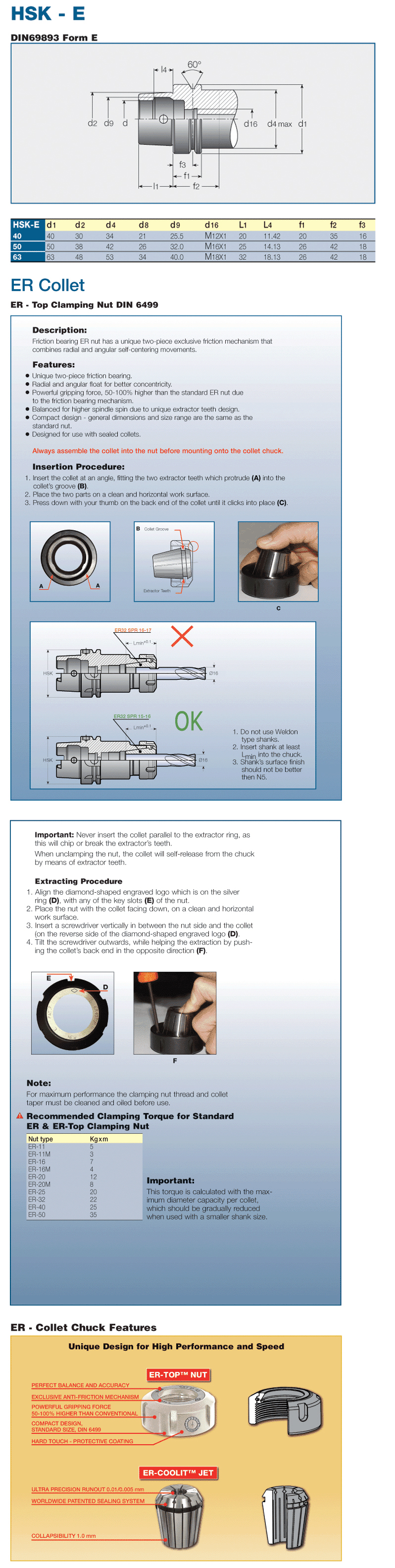

| Family Description | DIN6499 ER collet chucks with HSK DIN69893 form E tapered shanks. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.625
