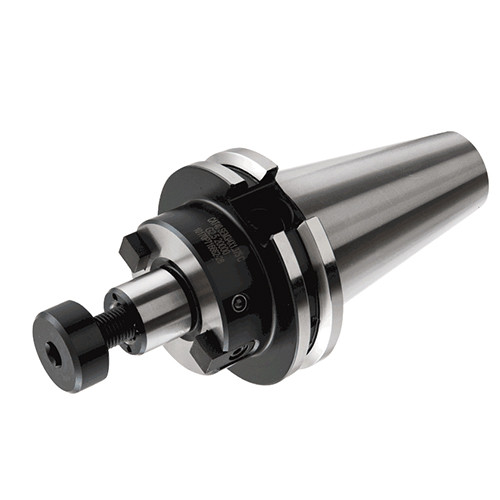

CAT40 SEM 1/2X2.000 C

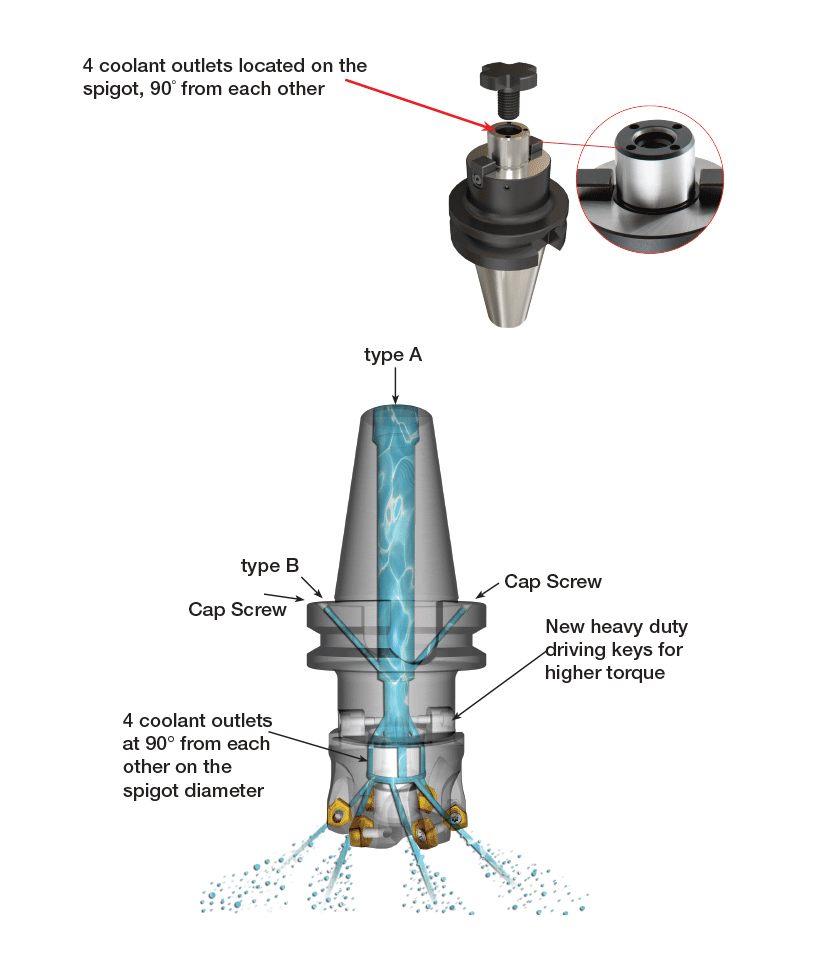

ISO 3937 shell mill holders with coolant holes and Caterpillar ADB tapered shanks. Symmetrical design, dynamically balanced for high RPM machining.

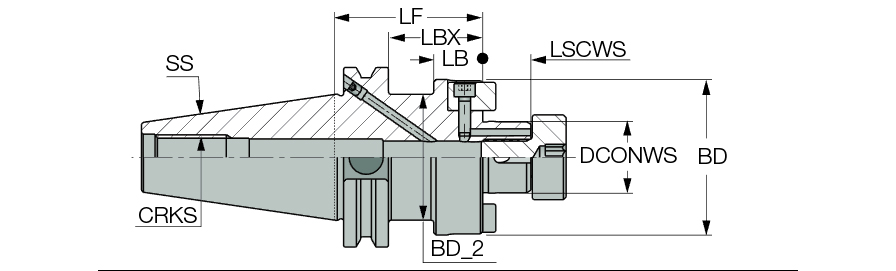

| Connection Diameter Workpiece Side (DCONWS) | 1/2″ | Clamping Length Workpiece Side (LSCWS) | 0.57″ |
| Shank Size (SS) | 40 | Material | Steel |
| Functional Length (LF) | 2″ | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 2″ | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 1.475″ | Tool Type | DIN 69871 |
| Shank Standard | CAT | Measurement Type | Inch |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | CAT |
| Hex Size | 5/8″ |
Product Features
| Family Description | ISO 3937 shell mill holders with coolant holes and Caterpillar ADB tapered shanks. Symmetrical design, dynamically balanced for high RPM machining. | Country of Origin | Turkey |
Shipping Info
LocalField10
0
Package Weight
2.68
