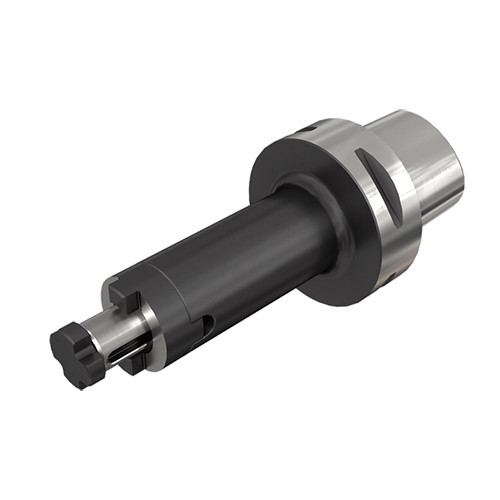

C6 SEMC22X60
Shell Mill Holder; 63 mm Shank Dia. ; 22 mm Hole Dia. ; 40 mm Body Dia. ; 60 mm Body Length ; 63 Shank Size ; CAT Shank

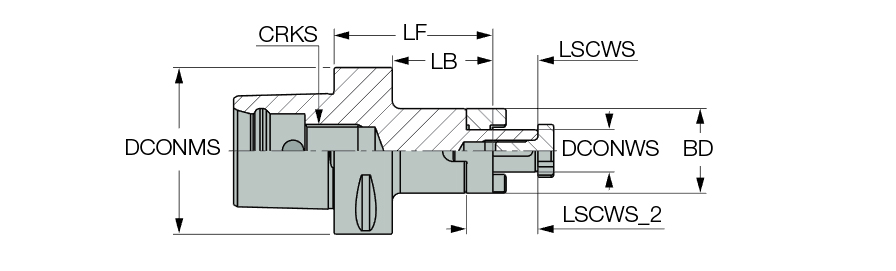

| Connection Diameter Machine Side (DCONMS) | 63 mm | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Clamping Length Workpiece Side (LSCWS) | 19 mm |
| Shank Size (SS) | 63 | Material | Steel |
| Functional Length (LF) | 60 mm | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 60 mm | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 40 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Shank Standard | CAMFIX | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
Product Features
| Family Description | DIN 6358 COMBI shell mill holders with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks. | Country of Origin | Israel |
| Remarks | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.771
