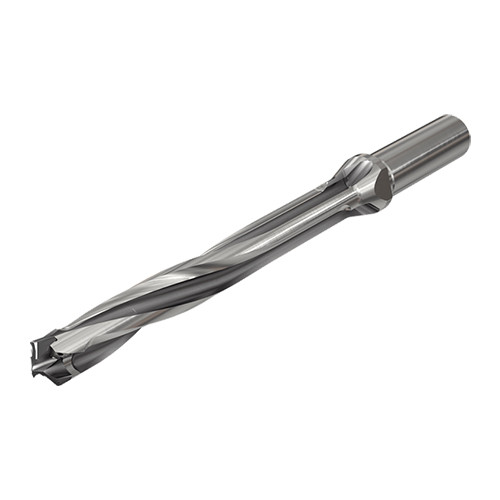

D3N 190-152-25R-8D
Exchangeable head 3 flute drills with internal coolant holes and a round shank, drilling depth 8xD

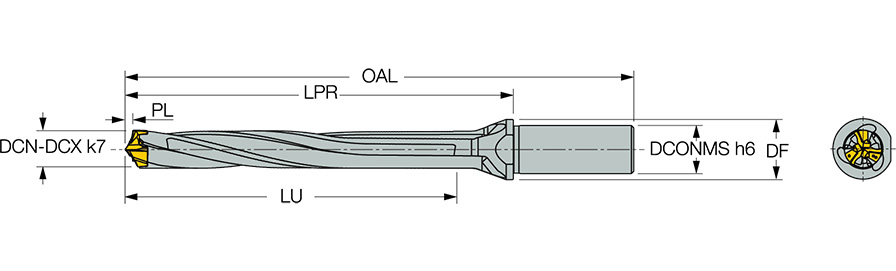

| Cutting Diameter (DC) | 19 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 156.1 mm | Cutting Item Count (CICT) | 1 |
| Shank Type | Round | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 190-IQ |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 4.1 mm |
| Insert Seat Size Code (SSC) | 19 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 19 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 19.9 mm | Body Material | Steel |
| Protruding Length (LPR) | 191.4 mm | Flange Diameter (DF) | 32 mm |
| Overall Length (OAL) | 247.4 mm |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and a round shank, drilling depth 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
1.113
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
