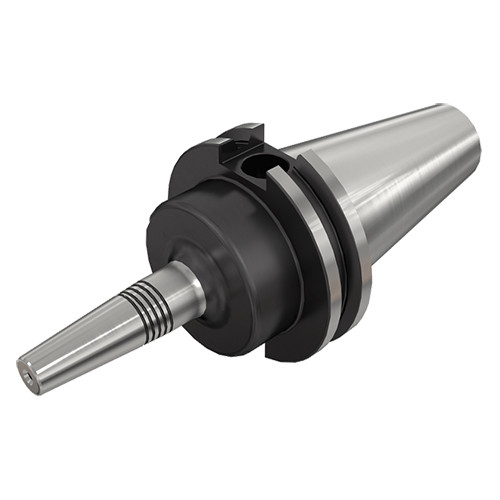

CAT40SRK3/8X3.250
Thermal shrinking holder with Caterpillar tapered shank, for carbide shank only.

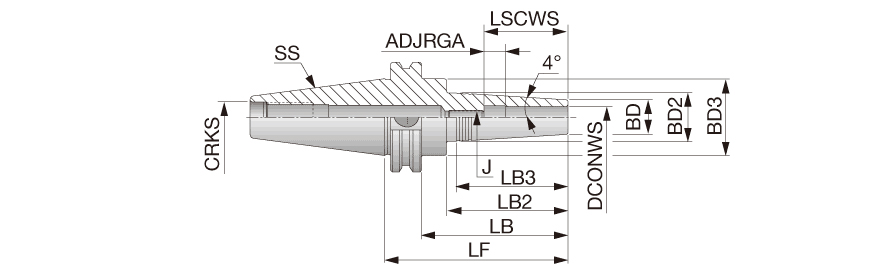

| Connection Diameter Workpiece Side (DCONWS) | 3/8″ | Shank Type | Round |
| Shank Size (SS) | 40. | Application | | Tapered shape interface | |
| Body Length (LB) | 2.88″ | Thread Designation Inside (THID) | M12 |
| Body Length_2 (LB_2) | 3-1/4″ | Clamping Length Workpiece Side (LSCWS) | 4.63″ |
| Body Diameter (BD) | 0.63″ | Measurement Type | Inch |
| Body Diameter_2 (BD_2) | 0.965″ | Tool Type | Caterpillar |
| Body Taper End Diameter (BTED) | 7.317″ | Body Material | Steel |
| Overall Length (OAL) | 4.63″ |
Product Features
| Family Description | Thermal shrinking holder with Caterpillar tapered shank, for carbide shank only. | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
Related Documentation
Related Items
