ST 5/8X6.30 SRK 1/8

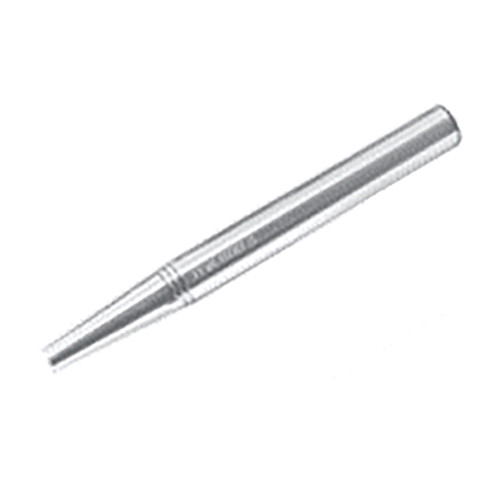

TungShrink thermal shrinking holder for carbide shank with Straight shank

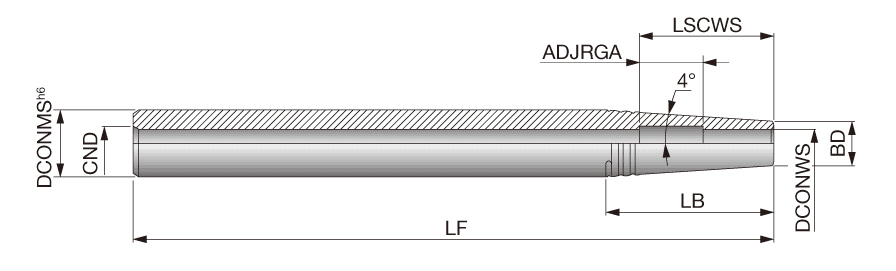

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Shank Type | Round |
| Connection Diameter Workpiece Side (DCONWS) | 1/8″ | Application | | Straight shape | |
| Body Length (LB) | 1.374″ | Clamping Length Workpiece Side (LSCWS) | 4.394″ |
| Body Diameter (BD) | 0.394″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 6.3″ | Tool Type | Cylindrical Shanks |
| Overall Length (OAL) | 6.3″ | Body Material | Steel |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide shank with Straight shank | Country of Origin | ISRAEL |
| Remarks | Applicable for 10 MPa pressure coolant. |
