TPHN M-18X2.5-W HS

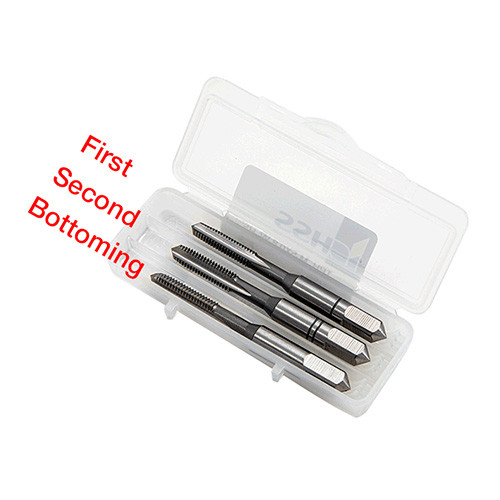

DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, secondoperation, and bottoming operation.
| Thread Diameter Size (TDZ) | M18 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
| Standard | DIN 352 | Measurement Type | Inch |
| Tool Type | Hand Taps | Thread Cutting Part Length (THL) | 1.378″ |
| Overall Length (OAL) | 3.74″ | Grade | HS |
| Connection Diameter Machine Side (DCONMS) | 0.551″ | Thread Pitch (TP) | 2.5 mm |
| Flute Count (NOF) | 4 | Thread Size | M18 × 2.5 |
| Cutting Edge Material | HSS | Body Material | HSS |
Product Features
| Family Description | DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, secondoperation, and bottoming operation. | Country of Origin | Hungary |
| Remarks | NOTE: Each set contains 2 or 3 taps |
Shipping Info
Additional Fees and Notes
0
Package Weight
333
