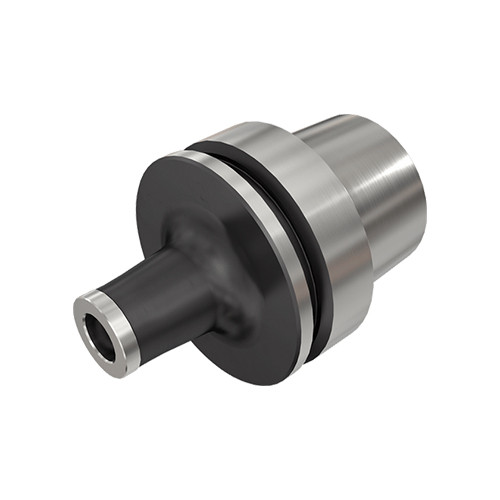

HSK E40 ODP10X103
FLEXFIT Threaded Adaptation with HSK DIN69893/E tapered shanks.

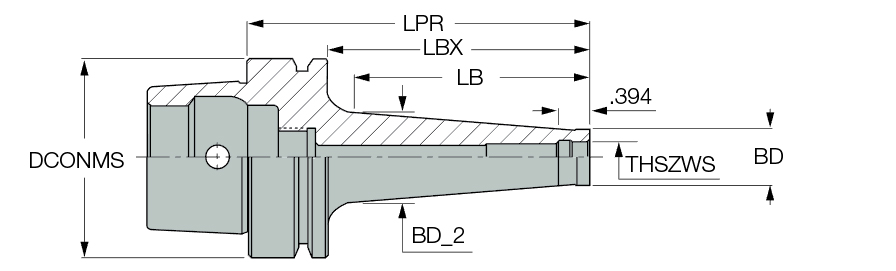

| Shank Size (SS) | 40 | Connection Thread Nominal Size Workpiece Side (THSZWS) | M10 |
| Protruding Length (LPR) | 4.055″ | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 2.953″ | Tool Type | HSK |
| Body Diameter (BD) | 1.102″ | Coolant Supply Property (CSP) | Through Hole |
| Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Inch |
| Shank Standard | HSK E | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Connection Code Machine Side (CCMS) | HSK |
| Application | | FLEXFIT | HSK | |
Product Features
| Family Description | FLEXFIT Threaded Adaptation with HSK DIN69893/E tapered shanks. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For adaptation Click on More Info. |
Shipping Info
Package Weight
1.043
