| Thread Diameter Size (TDZ) | #4 | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 40 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 2.5P |
| Overall Length (OAL) | 1-7/8″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 9/16″ | Flute Type | Spiral |
| Usable Length (LU) | 0.559″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Wire Gauge |
| Applicable Material | | Stainless Steel | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS | Series/List # | 303 |
Product Features

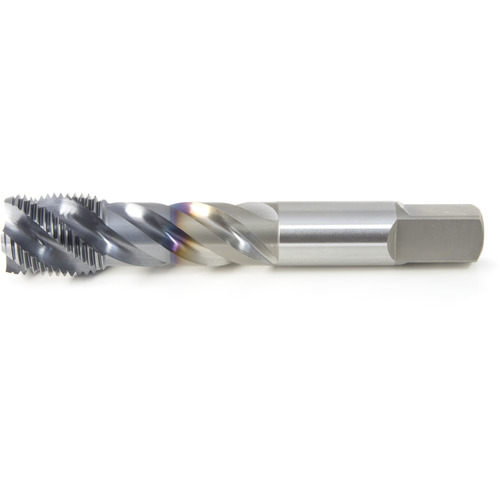

| Remarks | •EXOTAP VA-3 Spiral Fluted Taps, provides free cutting, rapid chip removal in stainless steel •Provides Free Cutting, Rapid Chip Removal In Stainless Steels •Steam Oxide Finish Shown •VC10 and VA3 Taps Available TiCN | Country of Origin | Brazil |
Shipping Info
Additional Fees and Notes
0
Package Length
2.95000
Package Width
.45000
Package Height
.40000
Package Weight
0.01
