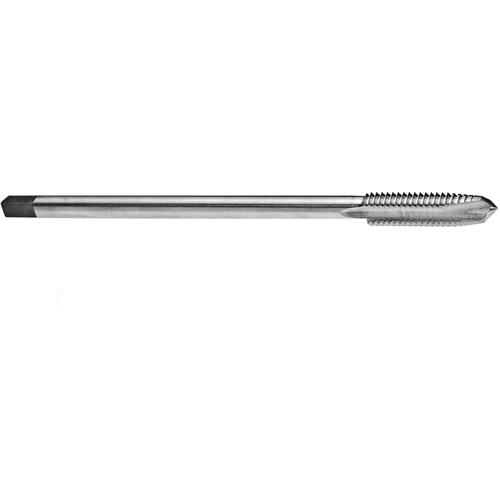

10-32 2FL H-3 4″O/A SPPT PLUG PULLEY TAPS 112SP
| Thread Diameter Size (TDZ) | #10 | Special Feature | Pulley Shank |
| Threads per Inch (TPI) | 32 | Tool Type | Pulley Tap |
| Thread Standard | NF | Chamfer | Plug |
| Overall Length (OAL) | 4″ | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 7/8″ | End Shape | Spiral Point |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 112SP |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | #10 - 32 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.042
