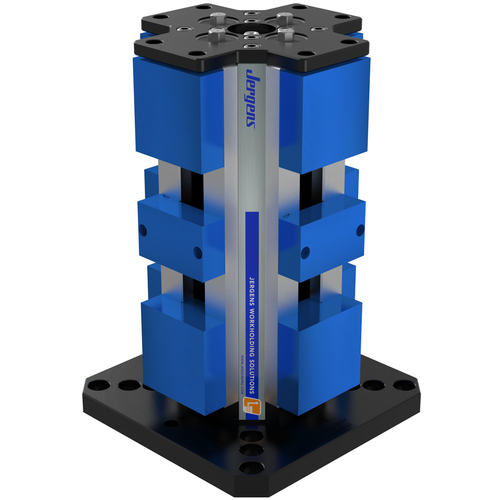

100 mm Ball Lock 4-Sided Production Vise Columns
Additional Canadian Tariff of 25 %
| Type | Ball Lock 4-Sided Production Vise Columns | Compatible With | Jergens Ball Lock Quick Change Mounting System, Jergens Ball Lock subplates |
| Jaw Width | 100 mm | Base Width | 400 mm |
| Jaw Depth | 30 mm | Base Height | 25 mm |
| Jaw Height | 30 mm | Weight | 57 kg |
| Jaw Opening Capacity | 176 mm | Maximum Clamping Force | 3,250 kgf |
Product Features
| Remarks | •Multiple mounting systems. •Fastest quick-change jaw system. •Full jaw travel. •Hardened and ground stainless steel rails support jaws and resist wear. •Fully sealed lead screw assembly. •Supplied with machinable soft jaws. •Available with hard jaws. | Country of Origin | USA |
Shipping Info
Package Weight
127.1
